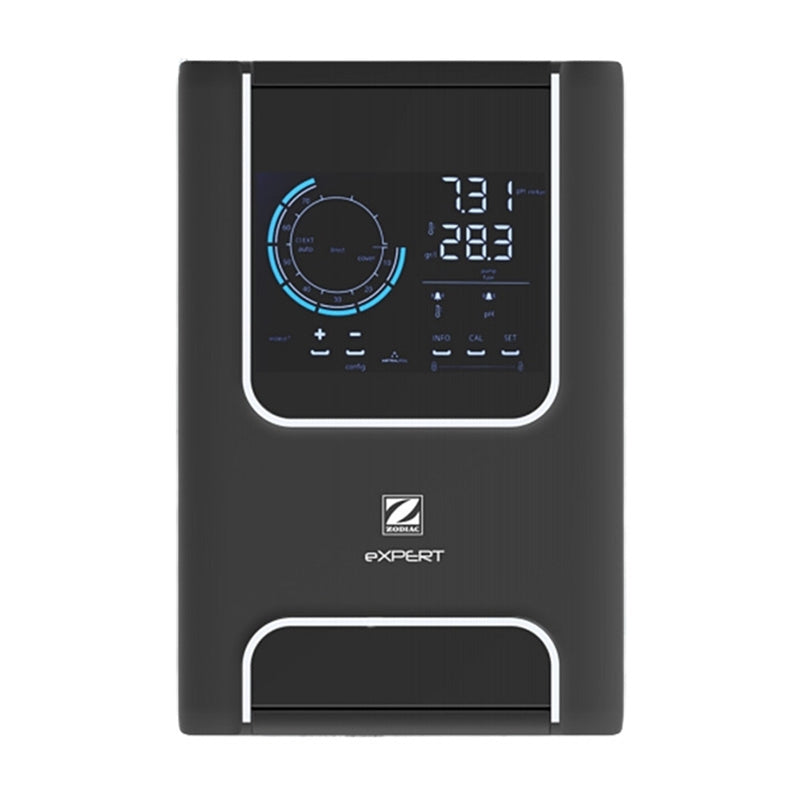

Salt Chlorinator eXPERT ZODIAC – Automation and Superior Efficiency
The eXPERT ZODIAC is a high-tech salt electrolysis system, developed to automatically, safely, and efficiently disinfect the pool. With a large touchscreen, smart sensors, and adaptable operation, it ensures always crystal clear water with minimal maintenance.
✔ Benefits of eXPERT ZODIAC
- ✅ Modern Interface: Intuitive touchscreen for simplified operation.
- ✅ High Capacity: Models for pools up to 180 m³.
- ✅ Automated Chemical Management: Automatic regulation of pH and ORP (Redox) according to the model.
- ✅ Smart Self-Cleaning: Configurable polarity reversal.
- ✅ Complete Security: Flow, salt, and pH alarms.
- ✅ Robust Construction: Resistant cell with IP65.
🔹 How does it work?
The eXPERT converts dissolved salt into active chlorine, continuously disinfecting the pool. With integrated sensors, it regulates chlorine and pH levels as needed, and can automatically reduce production when the pool is covered.
📊 General Technical Specifications
- ⚡ Modes: Normal and Boost (shock chlorination for 24h)
- 📏 Display: Touch screen with salinity and temperature reading
- 💧 Recommended Salinity: 4 – 10 g/L
- 🔄 Polarity Inversion: 2, 3, 4 or 7 hours
- 🛠️ Coverage Mode: Automatic reduction of production
- ⏳ Cell Lifespan: Approximately 10,000 hours
- 🔌 Power Supply: 230 VAC ~ 50 Hz
- 🌊 Flow Sensor: Integrated
- 🔔 Alarms: Flow, salt, and pH
- 🛡️ Protection: IP65 / Maximum pressure: 1 bar
📊 Available Models
| Model | Pool Volume | Chlorine Production | Power | Visible Salinity | Visible Temperature | Boost 24h | Protection |
|---|---|---|---|---|---|---|---|
| eXPERT 7 | Up to 30 m³ | 7 g/h | 0.2 A / 46 W | Yes | Yes | Yes | IP65 |
| eXPERT 12 | Up to 50 m³ | 12 g/h | 0.4 A / 92 W | Yes | Yes | Yes | IP65 |
| eXPERT 21 | Up to 100 m³ | 21 g/h | 0.4 A / 92 W | Yes | Yes | Yes | IP65 |
| eXPERT 30 | Up to 140 m³ | 30 g/h | 0.8 A / 184 W | Yes | Yes | Yes | IP65 |
| eXPERT 40 | Up to 180 m³ | 40 g/h | 0.9 A / 207 W | Yes | Yes | Yes | IP65 |
📌 Keep your pool always balanced and crystal clear with the eXPERT ZODIAC – the automatic solution for total disinfection with minimal effort. 🚀
