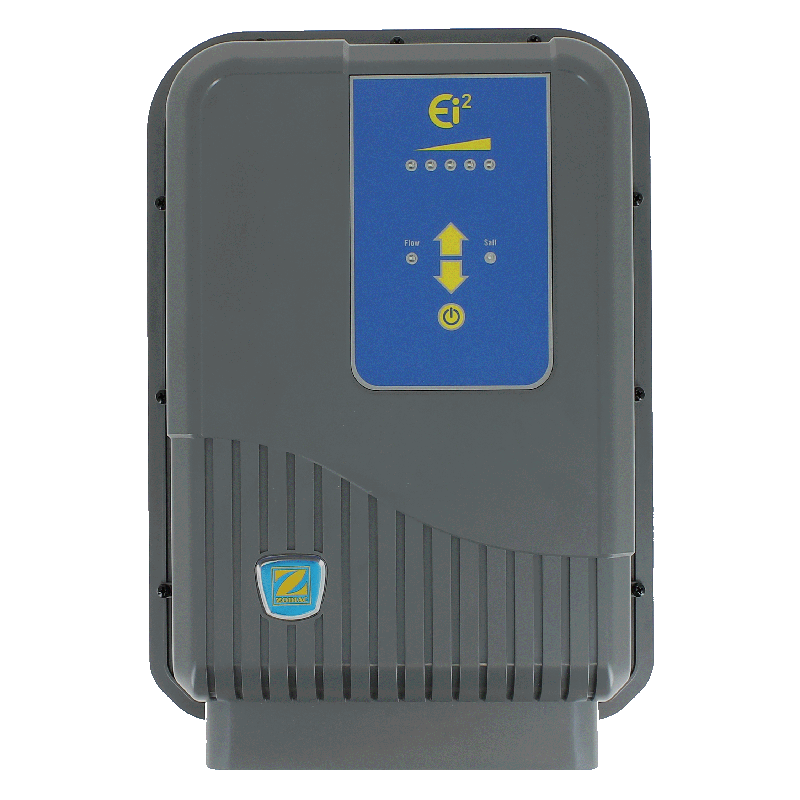

Zodiac Ei2 Salt Electrolysis
The Zodiac Ei2 is an efficient and easy-to-install salt chlorinator, ensuring automatic and safe disinfection of the pool. With long-lasting titanium cells and a self-cleaning system, it reduces the need for maintenance, providing crystal clear water with minimal effort.
✔ Benefits of Zodiac Ei2
- ✅ Quick Installation: Quick Fix system allows installation in less than 10 minutes.
- ✅ Titanium Electrodes: Long-lasting cell up to 7,500 hours.
- ✅ Self-cleaning: Polarity inversion for reduced maintenance.
- ✅ Enhanced Safety: Automatic stop in case of flow failure.
- ✅ IPX5 Protection: Water-resistant control unit for secure installation.
🔹 How does it work?
The saline electrolysis transforms the salt dissolved in water into gaseous chlorine, ensuring continuous disinfection of the pool. This process eliminates microorganisms and maintains an ideal level of free chlorine without the need for manual intervention. For optimal performance, the pH should be kept between 7.2 and 7.6.
📊 General Technical Specifications
- ⚡ Operating Modes: Normal
- 🔄 Polarity Inversion: Yes, every 5 hours
- 💧 Recommended Salt Rate: 4 g/L
- 🛠️ Cell Position: Horizontal or Vertical
- 🧪 Safety: Indicator of low salt and low flow
- 🔌 Power Supply: 230 VAC ~ 50 Hz
📊 Technical Specifications by Model
| Model | Ei2 12 | Ei2 20 | Ei2 25 |
|---|---|---|---|
| Volume of Treated Water | Up to 50 m³ | Up to 90 m³ | Up to 110 m³ |
| Chlorine Production | 12 g/h | 20 g/h | 25 g/h |
| Electrical Power | 70 W | 110 W | 140 W |
| Presentation | LEDs | ||
| Clock / Timer | Connected to Filtering | ||
| Protection Index | IPX5 | ||
| Compatible Tubing | DN50, DN63, 1½" (48mm) | ||
🔹 Safety Indicators
- ✔ Salt Deficiency: Reduction of production for cell protection.
- ✔ Flow Loss: Automatic interruption for system safety.
