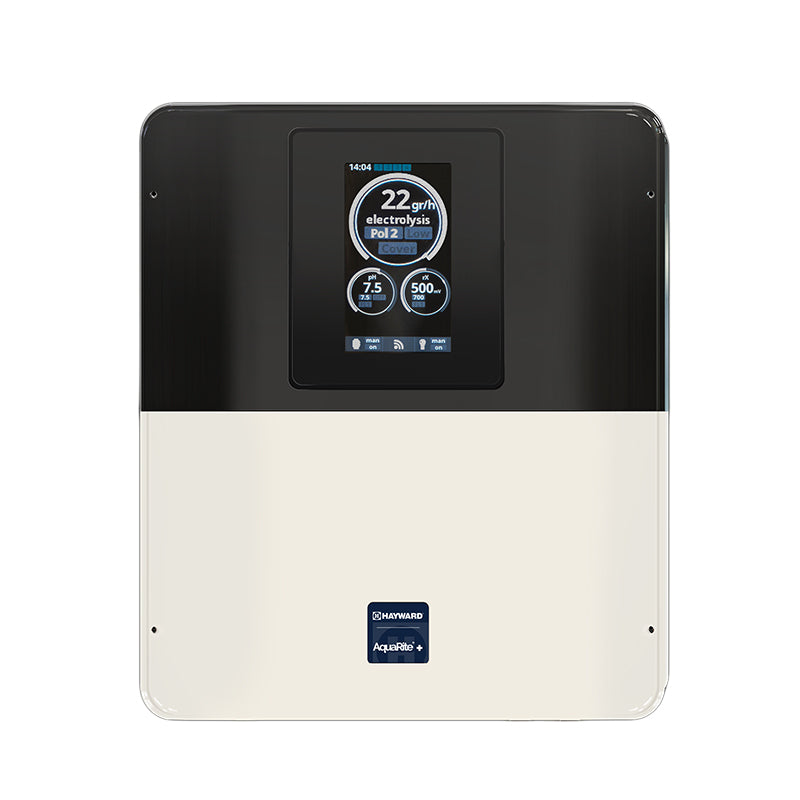

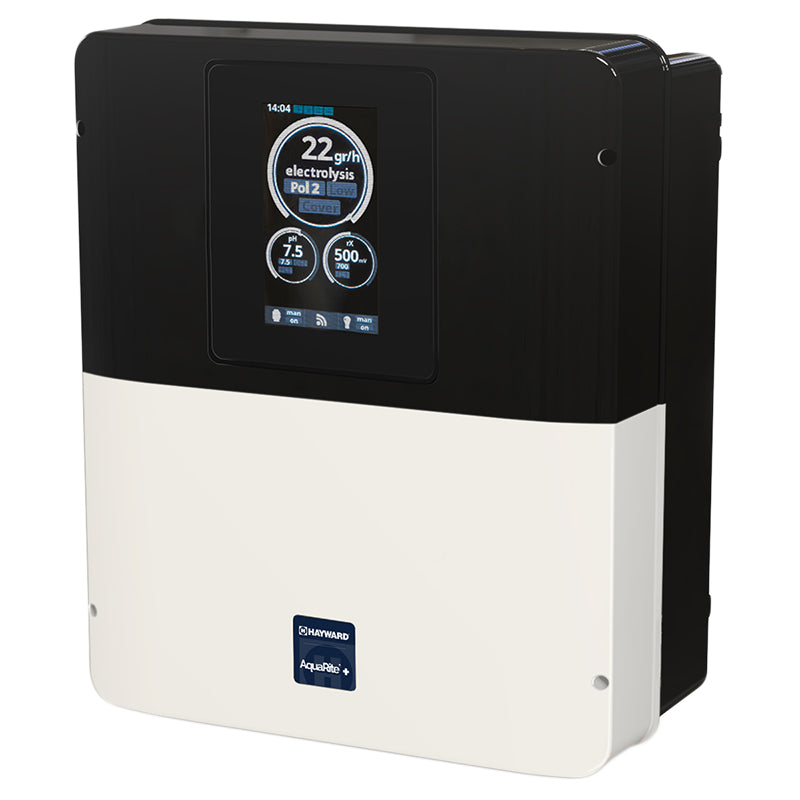

Salt Chlorinator AquaRite® Plus NG – Total Management and Integrated Control of the Pool
The AquaRite® Plus NG from Hayward is an advanced salt chlorinator that combines electrolysis, regulation, and equipment control in a single system. Through a single panel, it is possible to manage water disinfection and control devices such as filtration pump, heat pump, and lighting — with up to 4 additional auxiliary outputs.
✔ Main Benefits
- ✅ Centralized Control: 3-in-1 system — electrolysis, regulation, and equipment control in a single module.
- ✅ Integrated Relays: Direct communication with filtration pump, heat pump, lighting and 50 W transformer.
- ✅ Modular Expansion: Allows control of up to 4 additional assistants (total of 7 devices).
- ✅ Remote Connectivity: Compatible with Wi-Fi and Ethernet (optional module) for control via the Poolwatch® app.
- ✅ Transparent Cell: Easy visualization of chlorine production and simplified maintenance.
- ✅ Reading and Regulation: Monitoring of salinity, temperature, pH, ORP, free chlorine, and more.
- ✅ Smart Modes: Anti-freeze, Boost, Timer, Coverage Mode.
- ✅ Total Security: Gas detector, flow probe, and integrated alarms.
📊 Technical Specifications by Model
| Model | AQRPSV16ST | AQRPSV22ST | AQRPSV33ST | AQRPSV50ST |
|---|---|---|---|---|
| Chlorine Production | 16 g/h | 22 g/h | 33 g/h | 50 g/h |
| Pool Volume | Up to 60 m³ | Up to 90 m³ | Up to 115 m³ | Up to 180 m³ |
| Supported Salinity | 3 to 100 g/L NaCl | |||
| Food | 220V ~ 50/60Hz | |||
| Electricity Consumption | 120 W | 160 W | 150 W | 360 W |
| Dimensions | 270 x 220 x 115 mm | |||
| Protection | IP65 | |||
| Detections | Flow, Gas, Salinity ±10%, Temperature | |||
| Control Outputs | Lighting, Heating, Filtration + up to 4 auxiliaries | |||
| pH and ORP Control | Optional | |||
| Connectivity | Wi-Fi / Ethernet (optional) | |||
| Visor | LED backlit | |||
📌 With the AquaRite® Plus NG, you will have everything you need to keep your pool clean, safe, and connected — in one smart device. 💧⚙️
