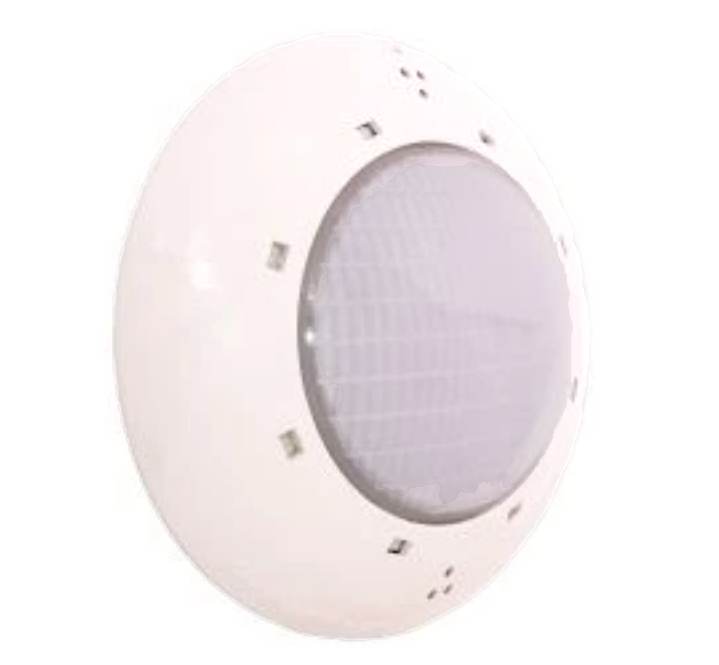

Aquasphere Flat Projectors
The flat underwater projectors Aquasphere have been developed to provide efficient and modern lighting, without the need for a niche. They are available in white or RGB with included remote control, and are ideal for new installations or direct replacements.
✔ Main Advantages
- ✅ Direct installation: Does not require a niche
- ✅ Reduced consumption: 11.5W (white) / 15W (RGB)

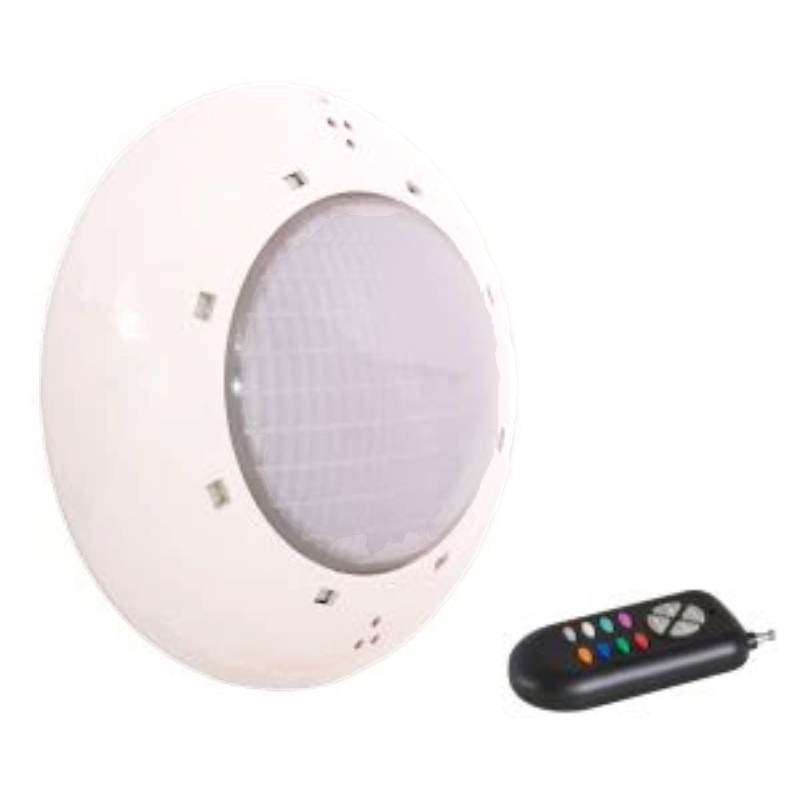

- ✅ Remote control: Included in the RGB version with 12 lighting modes
- ✅ Mandatory submersion: Installation between 400 to 700 mm from the water line
- ✅ 2-year warranty
📐 Technical Specifications
| Reference | Light Type | Consumption | Voltage | Luminous Flux | Color Temperature | Remote Control | Protection |
|---|---|---|---|---|---|---|---|
| 74941 | White | 11.5 W (18 VA) | 12V AC | 1300 lm | 5700 K | Not included | IPX8 – Class III |
| 71744 | RGB | 15 W (23 VA) | 12V AC | 900 lm | — | Included (12 color modes) | IPX8 – Class III |
📦 Included in the Package
- 📄 Installation and Maintenance Manual
- 🔌 Connection cable of 2.5 m (H07RN-F 2x1.5 mm²)
- 🎮 Remote control (only for model RGB 71744)
📏 Dimensions and Assembly
- 📐 Diameter: Ø280 mm
- 🔩 Thickness: 48mm
- 📦 No need for a niche – installation directly on the pool wall
- ⚠️ Use with a 12V AC safety transformer (not included) is required.
📌 The perfect choice to modernize your pool lighting with elegance and maximum efficiency.
