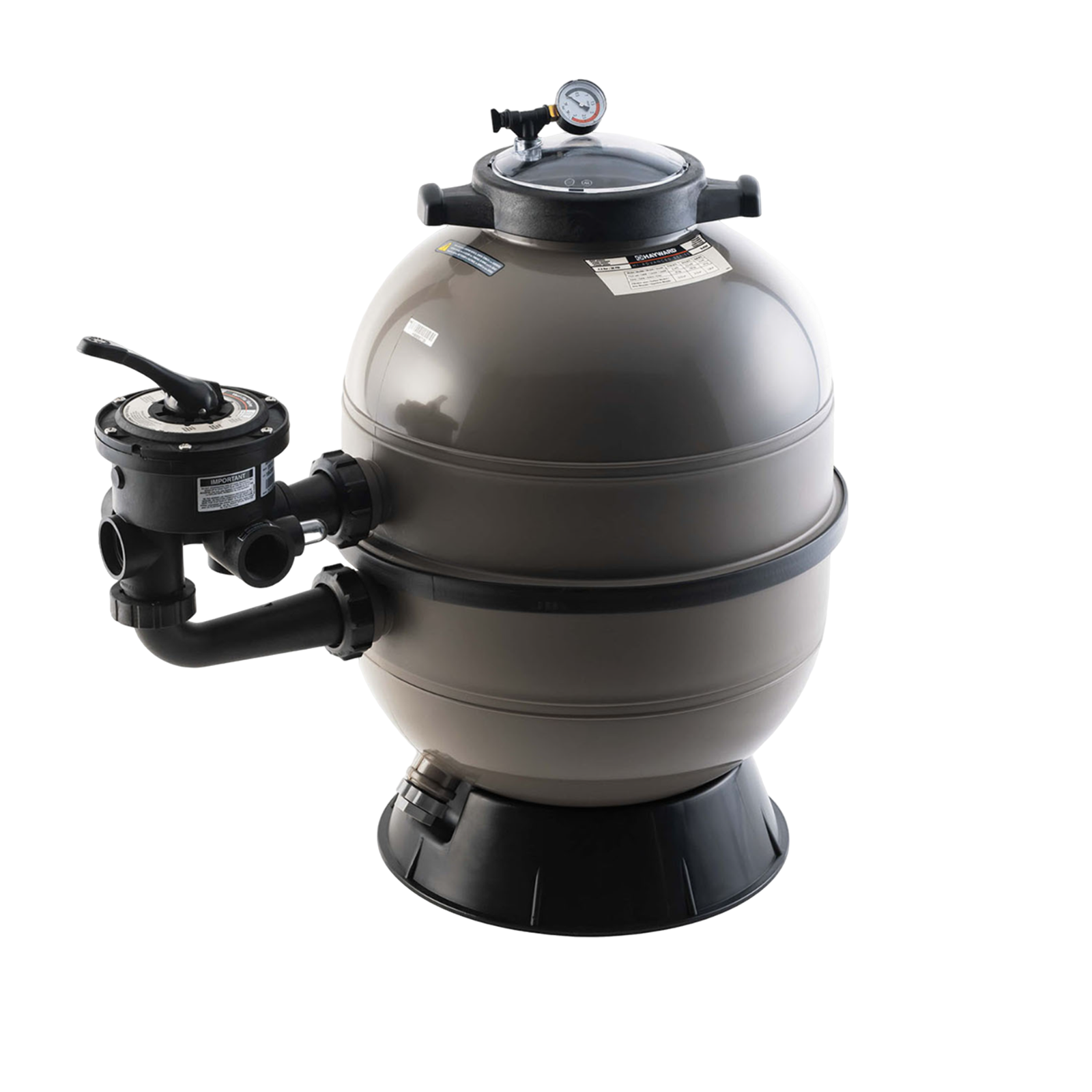

🌀 Hayward Hi Side Advance Filters
The Hi Side Advance Filters from Hayward are an economical, reliable, and highly durable solution, ideal for above-ground or medium-sized pools (up to 85 m³). Made of injected polyethylene with heat fusion welding, they are compatible with saltwater and offer excellent durability.
- ✅ Vari-Flo Valve with 6 positions: filtration, backwash, recirculation, rinse, closed, drainage
- ✅ Transparent polycarbonate cover with Twist Lock system
- ✅ Circular base for greater stability
- ✅ Integrated manometer and automatic purger
- ✅ Easy maintenance without the need for tools
- ✅ Operating pressure: 0.5 – 1.3 bar | Maximum: 2.5 bar
- ✅ Maximum water temperature: 50°C
📊 Technical Specifications – Hi Side Advance Filters
| Model | Caudal (m³/h) | Connection | Fine Sand (kg) | Coarse Sand (kg) | Filtering surface (m²) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Ø500 | 9.5 | 1,5” | 75 | 25 | 0.19 | 335 | 460 | 798 | 458 | 553 |
| Ø600 | 14.0 | 1,5” | 75 | 50 | 0.28 | 381 | 506 | 881 | 458 | 653 |
📌 Compatible with filter medium between 0.4 and 0.8 mm in granulation | Construction in PP, ABS, SAN®
