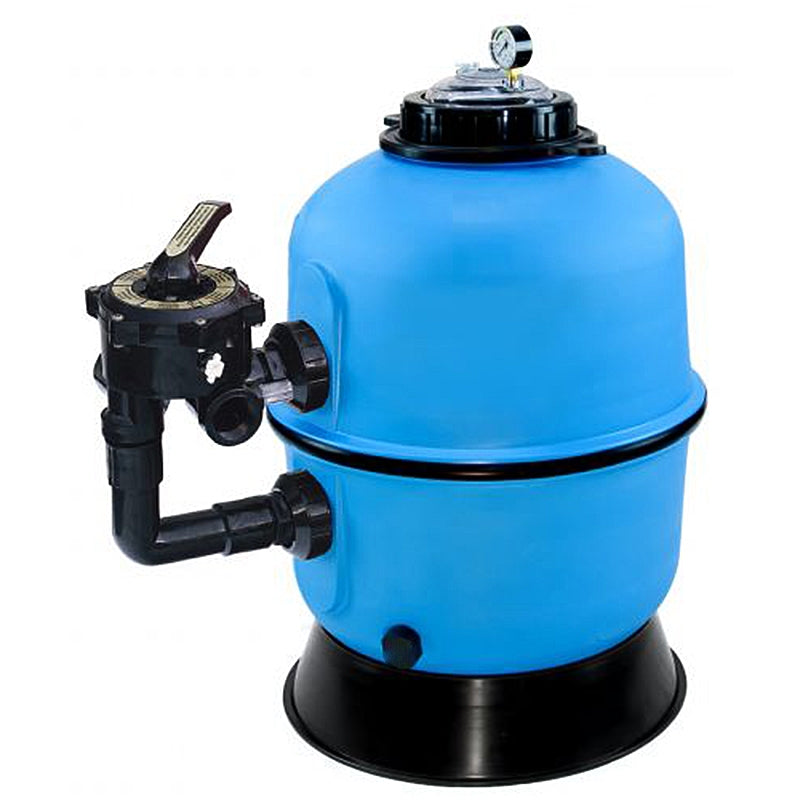

QP Cyclone Sand Filter – Professional Robustness for Residential Pools
The QP Ciclón, formerly known as Neptuno from the Coral brand, is a high-performance laminated filter for in-ground or above-ground pools. Made with polyester resin and fiberglass, it offers excellent durability, corrosion resistance, and an efficient and quiet filtration system.
✔ Benefits of the Cyclone Filter
- ✅ Efficient Filtration: Ideal filter bed height for better performance.
- ✅ Laminated Body: Made of polyester reinforced with fiberglass.
- ✅ Transparent Tampa: Facilitates the inspection and maintenance of the filter.
- ✅ Stable Base: Durable plastic base included in all models.
- ✅ Silent Operation: 6-way side selector valve with diffuser.
📊 General Technical Specifications
- 📏 Maximum working pressure: 2.5 bar
- 🔄 Connections: Inlet/outlet Ø 1½” or Ø 2” (depending on the model)
- 💧 Valve: 6-way side selector included
- ⚙️ Body: Polyester resin + fiberglass
- 🛠️ Usage: For above-ground or in-ground pools
📊 Technical Table by Model
| Model | Diameter Ø (mm) | Caudal (m³/h) | Sand Load (kg) | Connection | Total Height (mm) |
|---|---|---|---|---|---|
| CYCLONE 400 | 400 | 6 | 50 | 1½” | 730 |
| CYCLONE 500 | 500 | 10 | 85 | 1½” | 825 |
| CYCLONE 600 | 600 | 14 | 140 | 1½” | 940 |
| CYCLONE 750 | 750 | 21 | 225 | 2” | 1040 |
🔹 Installation and Compatibility
- ✔ 6-way side selector valve included as standard
- ✔ Durable plastic base for all models
- ✔ Transparent Tampa with easy-to-remove screws
📌 Note: This filter was previously marketed under the brand CORAL with the name Neptuno. With the transition to the brand Produtos QP, the model is now called Ciclone, maintaining the same quality and efficiency recognized in the market.
💦 Choose the Cyclone QP Filter for robust, durable filtration backed by a trusted brand! 🚀
