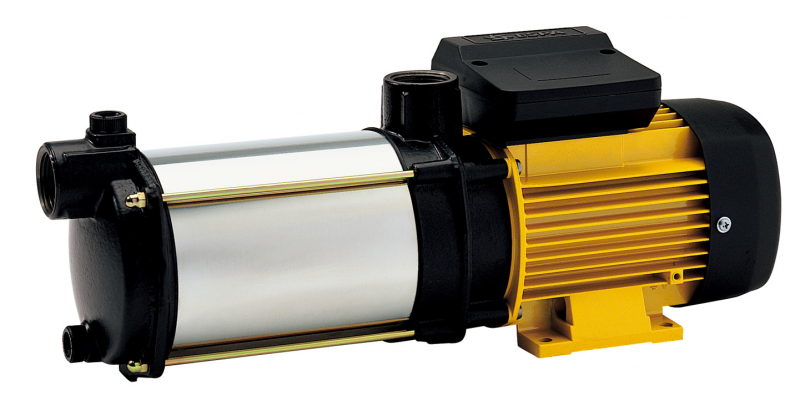

✔ Multistage ESPA Prisma 15 pump (2/3/4/5)
The Prisma 15 range consists of multistage surface centrifugal pumps, ideal for clean water supply in domestic, agricultural, industrial, and gardening applications. They stand out for their quiet operation, continuous duty, and robust construction.
⚙ Main features
- 2-pole asynchronous motor, IPX5, Class F insulation; single-phase version with built-in thermal protection.
- Self-priming up to 2 m and max. water temperature: 40 °C.
- Applications: water supply, pressurization, irrigation, and processes using clean water.
🛡 Construction materials
- Pump body and impellers in AISI 304; shaft in AISI 431.
- Diffusers in technopolymer; suction/discharge ports in cast iron with cataphoresis treatment.
- Seals in NBR/EPDM; motor housing in aluminum.
📊 Models & key data
| Model | P2 (kW / HP) | P1 (kW) | Voltage | Current I [A] | Capacitor | Code (1~) | Code (3~) | Connections | Weight |
|---|---|---|---|---|---|---|---|---|---|
| Prisma 15-3 | 0,37 / 0,50 | 0,61 | 1~ 230 V / 3x400V | 1~: 2.7 · 3~: 2.1 / 1.2 | 12 µF | 97141 | 97138 | 1″ x 1″ | 9.2 kg |
| Prisma 15-4 | 0,55 / 0,75 | 0,79 | 1~ 230 V / 3x400V | 1~: 3.5 · 3~: 2.3 / 1.3 | 12 µF | 97150 | 97148 | 1″ x 1″ | 10.0 kg |
| Prisma 15-5 | 0,75 / 1,00 | 0,95 | 1~ 230 V / 3x400V | 1~: 4.1 · 3~: 3.3 / 1.9 | 12 µF | 97159 | 97157 | 1″ x 1″ | 11.0 kg |
Notes: electrical data from the technical data sheet; 1~ version includes built-in thermal protection.
📈 Hydraulic performance (head in m.w.c.)
| Model | Q = 1.2 m³/h (20 l/min) |
Q = 2.4 m³/h (40 l/min) |
Q = 3.6 m³/h (60 l/min) |
|---|---|---|---|
| Prisma 15-2 | 20 m | 14 m | 7 m |
| Prisma 15-3 | 30 m | 22 m | 11 m |
| Prisma 15-4 | 39 m | 27 m | 14 m |
| Prisma 15-5 | 47 m | 34 m | 17 m |
Values taken from the performance table at 2900 rpm (additional values available in the technical data sheet).
📐 Dimensions (mm)
| Model | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| Prisma 15-2 | 163 | 213 | 202 | 110 | 74 | 162 | 121 | 102 | 1″ | 1″ |
| Prisma 15-3 | 187 | 237 | 202 | 110 | 74 | 162 | 121 | 102 | 1″ | 1″ |
| Prisma 15-4 | 211 | 261 | 202 | 110 | 74 | 162 | 121 | 102 | 1″ | 1″ |
| Prisma 15-5 | 235 | 285 | 202 | 110 | 74 | 162 | 121 | 102 | 1″ | 1″ |
🧩 Included / Notes
- Supplied without cable (as per technical data sheet).
- For use with clean water; check NPSH/suction conditions for self-priming up to 2 m.
- For automatic pressurization, we recommend a pressure switch/tank or variable-speed drive, depending on the required flow rate.
